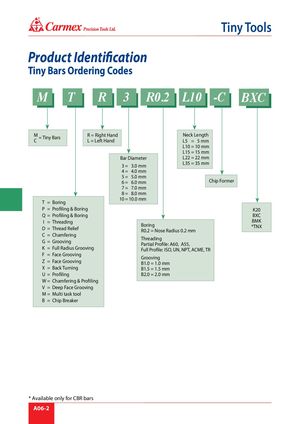

® Tiny Tools Product Identification Tiny Bars Ordering Codes M T R 3 R0.2 L10 -C BXC MC = Tiny Bars R = Right HandL = Left Hand Neck LengthL5=5 mm L10 = 10 mm L15 = 15 mm Bar Diameter L22 = 22 mm 3= 3.0 mm L35 = 35 mm 4= 4.0 mm 5= 5.0 mm 6= 6.0 mm Chip Former 7= 7.0 mm 8= 8.0 mm T = Boring 10 = 10.0 mm P = Profiling & Boring K20 Q = Profiling & Boring BXC I = ThreadingD = Thread Relief BMKBoring*TNXR0.2 = Nose Radius 0.2 mm C = Chamfering G = Grooving ThreadingPartial Profile: A60, A55, K = Full Radius Grooving Full Profile: ISO, UN, NPT, ACME, TR F = Face GroovingZ = Face Grooving GroovingB1.0 = 1.0 mm X = Back Turning B1.5 = 1.5 mm U = Profiling B2.0 = 2.0 mm W = Chamfering & Profiling V = Deep Face Grooving M = Multi task tool B = Chip Breaker * Available only for CBR bars A06-2
