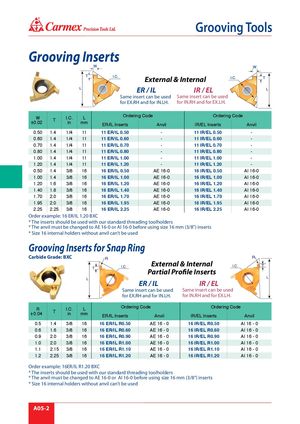

® Grooving Tools Grooving Inserts External & Internal ER / IL IR / EL Same insert can be used Same insert can be used for EX.RH and for IN.LH. for IN.RH and for EX.LH. W0.02 T I.C. Linmm Ordering CodeER/IL InsertsAnvil Ordering CodeIR/EL InsertsAnvil 0.50 1.4 1/4 11 11 ER/IL 0.50 - 11 IR/EL 0.50 - 0.60 1.4 1/4 11 11 ER/IL 0.60 - 11 IR/EL 0.60 - 0.70 1.4 1/4 11 11 ER/IL 0.70 - 11 IR/EL 0.70 - 0.80 1.4 1/4 11 11 ER/IL 0.80 - 11 IR/EL 0.80 - 1.00 1.4 1/4 11 11 ER/IL 1.00 - 11 IR/EL 1.00 - 1.20 1.4 1/4 11 11 ER/IL 1.20 - 11 IR/EL 1.20 - 0.50 1.4 3/8 16 16 ER/IL 0.50 AE 16-0 16 IR/EL 0.50 AI 16-0 1.00 1.4 3/8 16 16 ER/IL 1.00 AE 16-0 16 IR/EL 1.00 AI 16-0 1.20 1.6 3/8 16 16 ER/IL 1.20 AE 16-0 16 IR/EL 1.20 AI 16-0 1.40 1.8 3/8 16 16 ER/IL 1.40 AE 16-0 16 IR/EL 1.40 AI 16-0 1.70 2.0 3/8 16 16 ER/IL 1.70 AE 16-0 16 IR/EL 1.70 AI 16-0 1.95 2.0 3/8 16 16 ER/IL 1.95 AE 16-0 16 IR/EL 1.95 AI 16-0 2.25 2.25 3/8 16 16 ER/IL 2.25 AE 16-0 16 IR/EL 2.25 AI 16-0 Order example: 16 ER/IL 1.20 BXC * The inserts should be used with our standard threading toolholders * The anvil must be changed to AE 16-0 or AI 16-0 before using size 16 mm (3/8”) inserts * Size 16 internal holders without anvil can’t be used Grooving Inserts for Snap Ring Carbide Grade: BXC External & Internal Partial Profile Inserts ER / IL IR / EL Same insert can be used Same insert can be used for EX.RH and for IN.LH. for IN.RH and for EX.LH. R0.04 T I.C. Linmm Ordering CodeER/IL InsertsAnvil Ordering CodeIR/EL InsertsAnvil 0.5 1.4 3/8 16 16 ER/IL R0.50 AE 16 - 0 16 IR/EL R0.50 AI 16 - 0 0.6 1.6 3/8 16 16 ER/IL R0.60 AE 16 - 0 16 IR/EL R0.60 AI 16 - 0 0.9 2.0 3/8 16 16 ER/IL R0.90 AE 16 - 0 16 IR/EL R0.90 AI 16 - 0 1.0 2.0 3/8 16 16 ER/IL R1.00 AE 16 - 0 16 IR/EL R1.00 AI 16 - 0 1.1 2.15 3/8 16 16 ER/IL R1.10 AE 16 - 0 16 IR/EL R1.10 AI 16 - 0 1.2 2.25 3/8 16 16 ER/IL R1.20 AE 16 - 0 16 IR/EL R1.20 AI 16 - 0 Order example: 16ER/IL R1.20 BXC * The inserts should be used with our standard threading toolholders * The anvil must be changed to AE 16-0 or AI 16-0 before using size 16 mm (3/8”) inserts * Size 16 internal holders without anvil can’t be used A05-2
