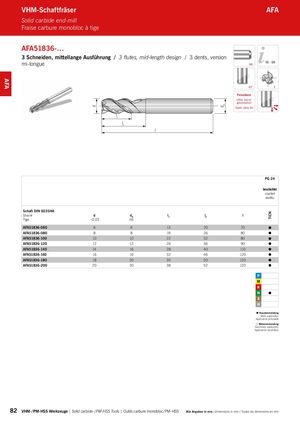

Каталог ARNO монолитный осевой инструмент - страница 82

AFA d dA TiCN l VHM-Schaftfräser AFA Solid carbide end-mill Fraise carbure monobloc à tige AFA51836-… 3 Schneiden, mittellange Ausführung / 3 flutes, mid-length design / 3 dents, version mi-longue HA 98 – 106 45° 3 Feinstkorn Ultra micro granulation Grain ultra fin l1 l2 PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l2 l Tige -0,03 h6 AFA51836-060 6 6 13 20 70  AFA51836-080 8 8 19 26 80  AFA51836-100 10 10 22 32 80  AFA51836-120 12 12 26 36 90  AFA51836-140 14 16 28 40 110  AFA51836-160 16 16 32 46 120  AFA51836-180 18 20 35 50 120  AFA51836-200 20 20 38 52 120    Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 82 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm
