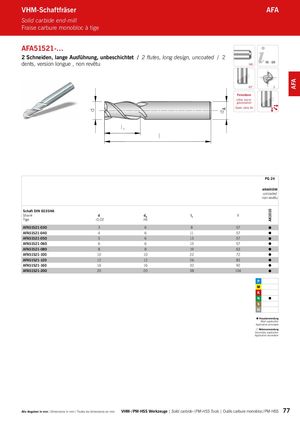

AK1010 AFA VHM-Schaftfräser AFA Solid carbide end-mill Fraise carbure monobloc à tige AFA51521-… 2 Schneiden, lange Ausführung, unbeschichtet / 2 flutes, long design, uncoated / 2 dents, version longue , non revêtu HA 98 – 106 45° 2 Feinstkorn Ultra micro granulation Grain ultra fin PG 24 unbeschichtet uncoated non-revêtu Schaft DIN 6535HA Shank d dA l1 l Tige -0,03 h6 AFA51521-030 3 6 8 57  AFA51521-040 4 6 11 57  AFA51521-050 5 6 13 57  AFA51521-060 6 6 13 57  AFA51521-080 8 8 19 63  AFA51521-100 10 10 22 72  AFA51521-120 12 12 26 83  AFA51521-160 16 16 32 92  AFA51521-200 20 20 38 104    Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 77
