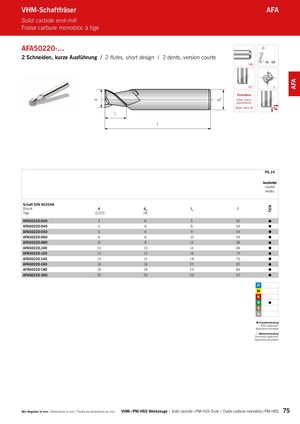

Каталог ARNO монолитный осевой инструмент - страница 75

d dA TiCN AFA l VHM-Schaftfräser AFA Solid carbide end-mill Fraise carbure monobloc à tige AFA50220-… 2 Schneiden, kurze Ausführung / 2 flutes, short design / 2 dents, version courte HA 98 – 106 45° 2 Feinstkorn Ultra micro granulation Grain ultra fin l1 PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l Tige -0,015 h6 AFA50220-030 3 6 5 50  AFA50220-040 4 6 8 54  AFA50220-050 5 6 9 54  AFA50220-060 6 6 10 54  AFA50220-080 8 8 12 58  AFA50220-100 10 10 14 66  AFA50220-120 12 12 16 73  AFA50220-140 14 14 18 75  AFA50220-160 16 16 22 82  AFA50220-180 18 18 24 84  AFA50220-200 20 20 26 92    Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 75
