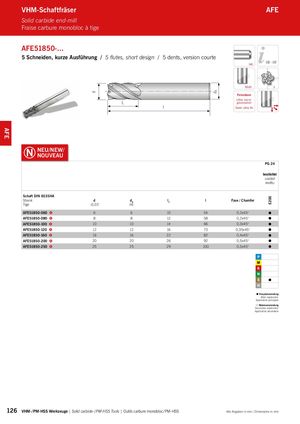

d dA E200 l AFE VHM-Schaftfräser AFE Solid carbide end-mill Fraise carbure monobloc à tige AFE51850-... 5 Schneiden, kurze Ausführung / 5 flutes, short design / 5 dents, version courte HA 132 – 137 Multi 5 Feinstkorn Ultra micro l1 granulation Grain ultra fin NEU/NEW/ NOUVEAU PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l Fase / Chamfer Tige -0,03 h6 AFE51850-060 N 6 6 10 54 0,2x45°  AFE51850-080 N 8 8 12 58 0,2x45°  AFE51850-100 N 10 10 14 66 0,3x45°  AFE51850-120 N 12 12 16 73 0,35x45°  AFE51850-160 N 16 16 22 82 0,4x45°  AFE51850-200 N 20 20 26 92 0,5x45°  AFE51850-250 N 25 25 29 100 0,5x45°    Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 126 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm
