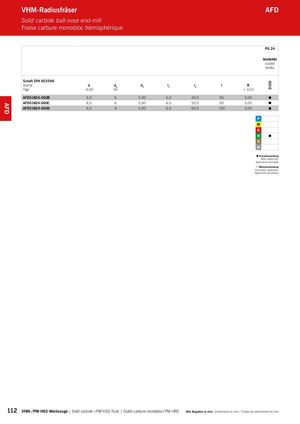

Каталог ARNO монолитный осевой инструмент - страница 112

D100 AFD VHM-Radiusfräser AFD Solid carbide ball-nose end-mill Fraise carbure monobloc hémisphérique PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA d3 l1 l2 l R Tige -0,02 h6 ± 0,01 AFD51824-060B 6,0 6 5,90 6,0 40,0 90 3,00  AFD51824-060C 6,0 6 5,90 6,0 50,0 90 3,00  AFD51824-060D 6,0 6 5,90 6,0 60,0 100 3,00    Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 112 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm
