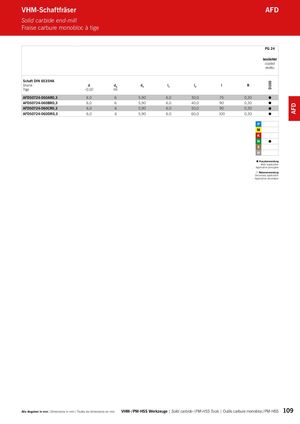

Каталог ARNO монолитный осевой инструмент - страница 109

D100 AFD VHM-Schaftfräser AFD Solid carbide end-mill Fraise carbure monobloc à tige PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA d3 l1 l2 l R Tige -0,02 h6 AFD50724-060AR0,3 6,0 6 5,90 6,0 30,0 75 0,30  AFD50724-060BR0,3 6,0 6 5,90 6,0 40,0 90 0,30  AFD50724-060CR0,3 6,0 6 5,90 6,0 50,0 90 0,30  AFD50724-060DR0,3 6,0 6 5,90 6,0 60,0 100 0,30    Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 109
